Home / Shop / Tecles y Polipastos Cadena Manuales Cadena Manual / PWV-Tp Series G100 con Proteccion sobrecarga

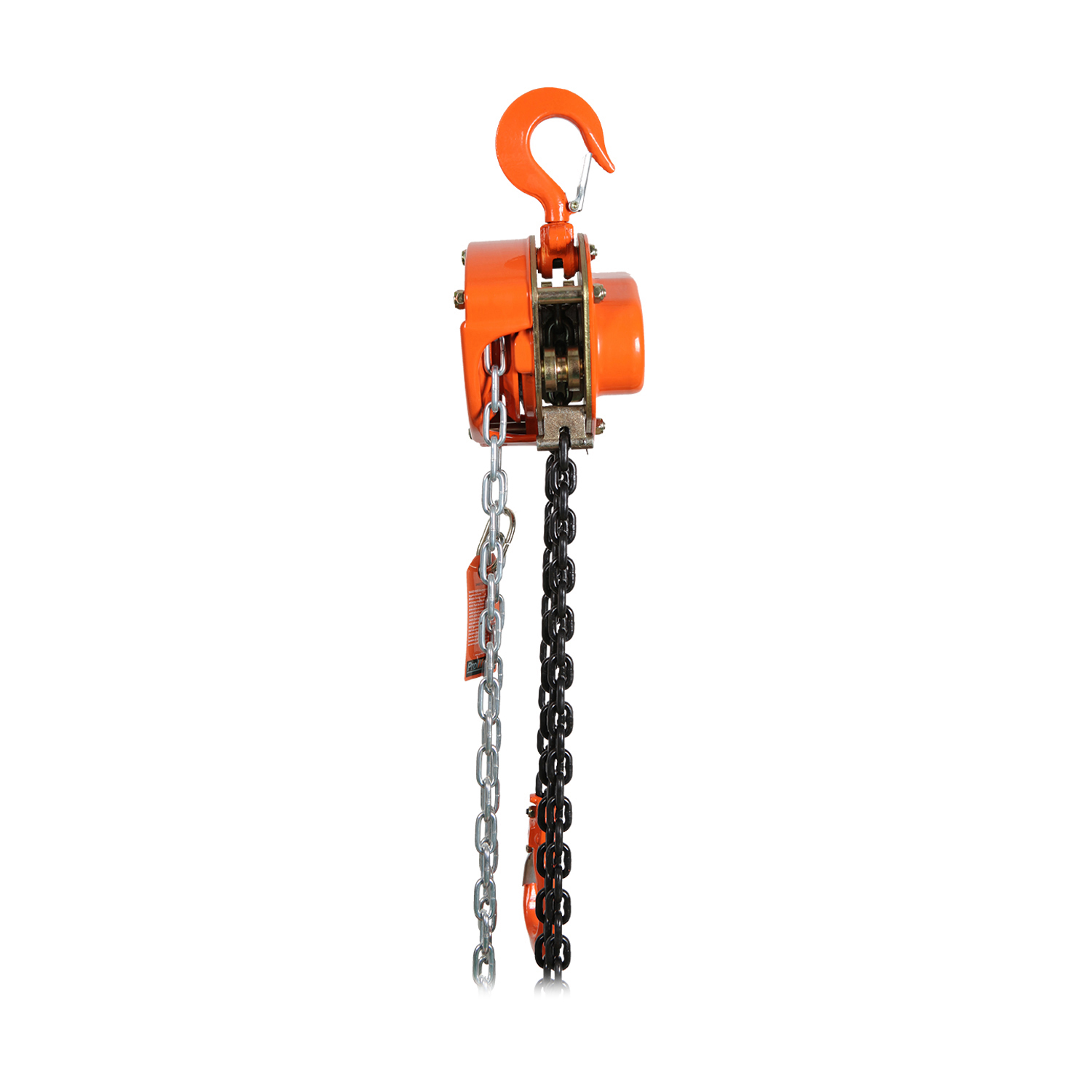

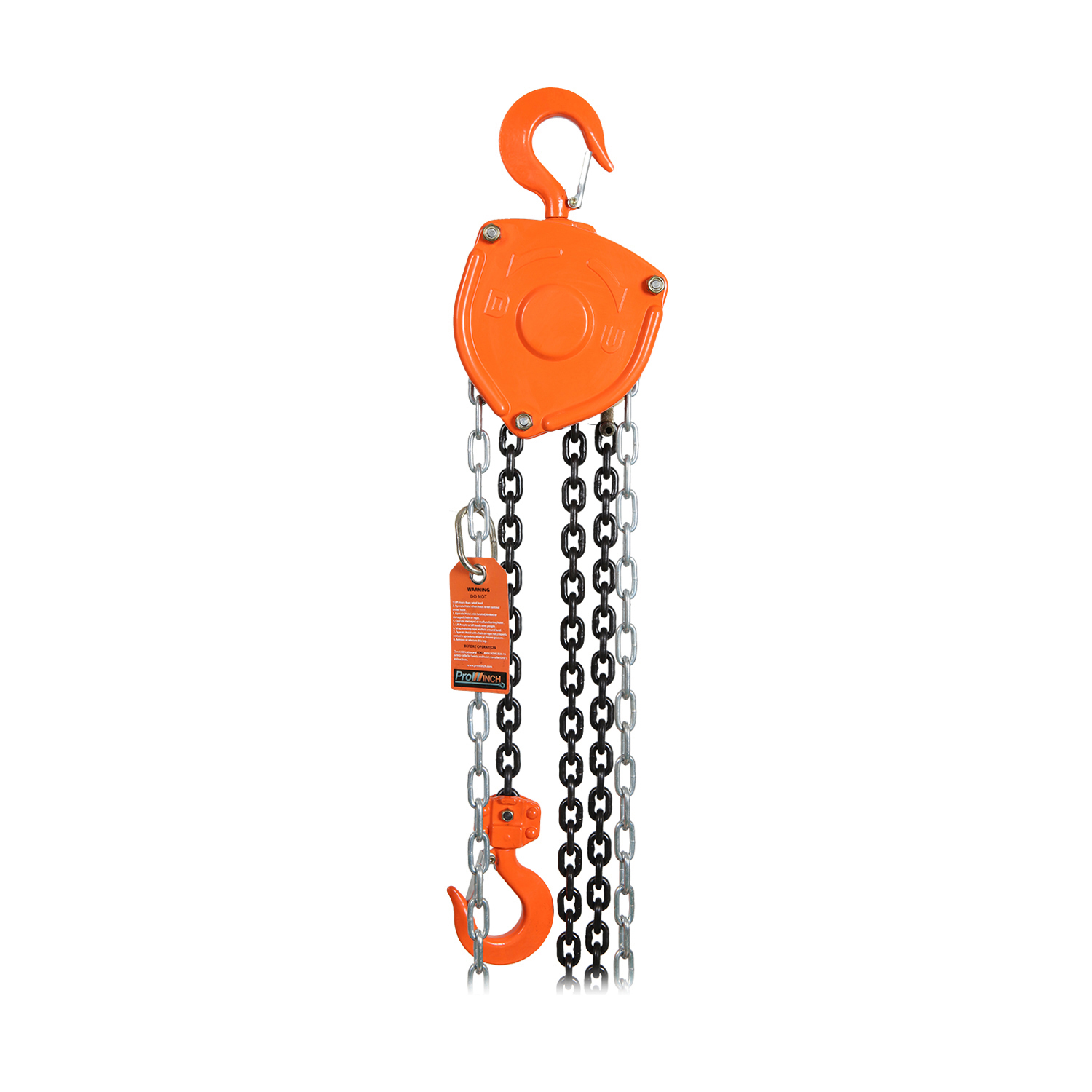

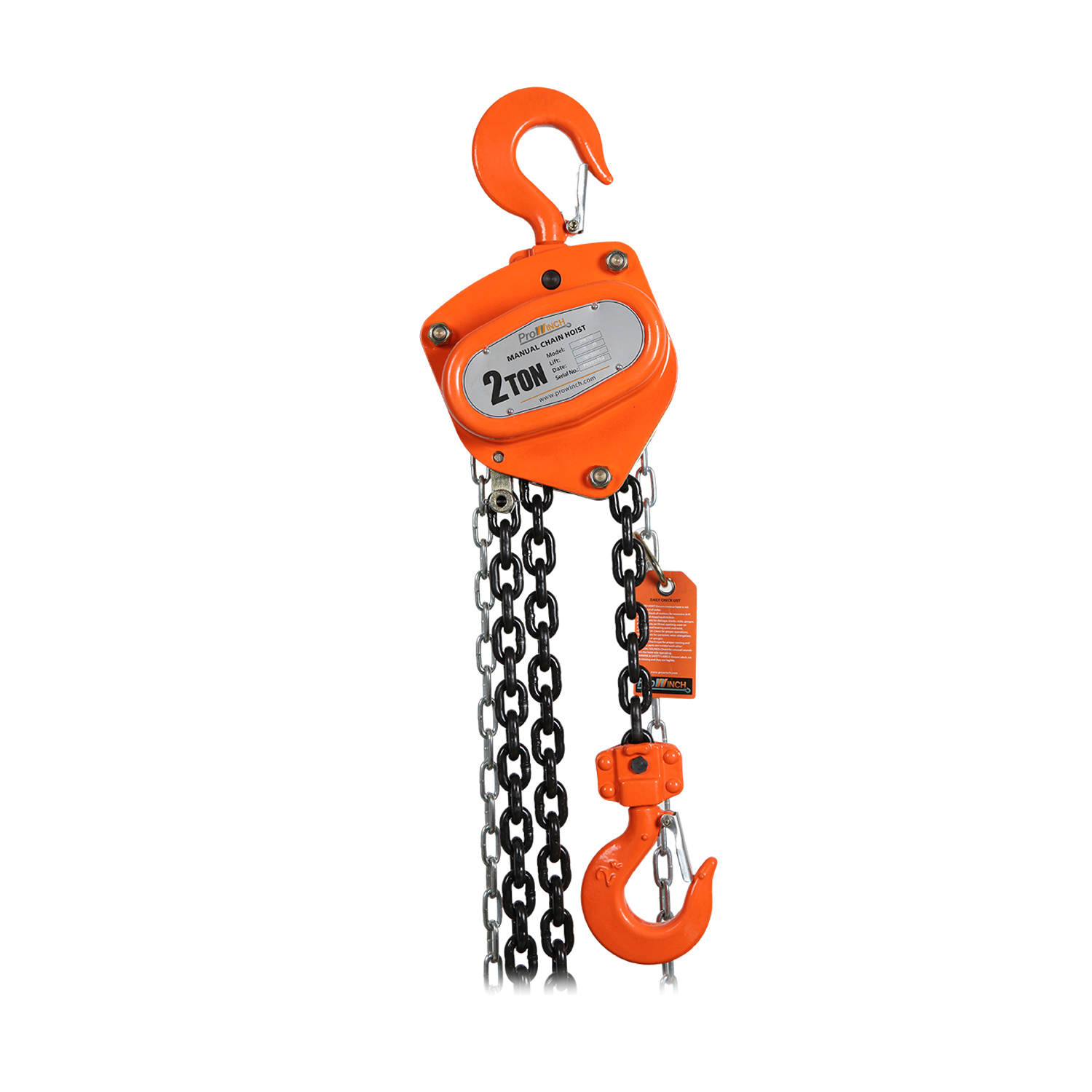

Polipasto Cadena 2 Ton 6 metros con Proteccion de Sobrecarga y cadena G100
SKU: PWV2Tp
$430.18 USD + IVA
5 disponible(s) Solicitar

Características Esenciales

  • 3 Años de Garantía, Servicio y Atención al Cliente en Chile
Artboard 1

Prowinch Manual Chain Hoist

All of our Manual Chain Hoists are created with the goal of offering the best price–performance ratio. Key components such as lifespan factors are constantly tested and improved in order to offer the best product for the price.

Overload Protection System

The built-in overload protection system helps prevent the operated from accidentally damaging the hoist by lifting a load higher than the rated capacity. When the overload protection is activated while lifting, the hoist will only be able to be lowered by the operator.

Braking System

The reliable disc brake system is tested at 125% of the hoist capacity.

Especificaciones Técnicas

PWV2Tp
  • Capacidad de Carga 4410 lb / 2000 kg
  • Caidas de Cadena 1
  • Altura de Izaje Estandard (Customizable) 20 ft / 6 m
  • Normas ANSI/ASME B30.16, EN13157, ISO 16877-2008
  • Tipo de Cadena G100
  • Garantía 3 Year
  • Dimensiones de la Cadena Thickness: 7.60 mm

Peso & Dimensiones

  • Peso Total 39 lbs / 18 Kg

Detalles del Empaque

  • Paquete 1 Peso Neto 37 lbs / 17 Kg
  • Paquete 1 Ancho 8 in / 20.32 cm
  • Paquete 1 Peso Bruto 39 lbs / 18 Kg
  • Paquete 1 Altura 10 in / 25.4 cm
  • Paquete 1 Profundidad 9 in / 22.86 cm
